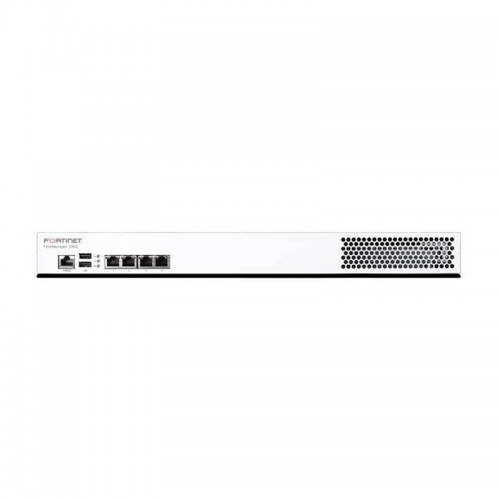

Fortinet FortiManager 200G

Overview

The Fortinet FortiManager 200G is a dedicated on-premises appliance designed to centrally manage your Fortinet security infrastructure. It enables streamlined deployment, configuration, policy management and monitoring of Fortinet devices from a single console. With support for zero-touch provisioning, role-based access control, multi-tenant administrative domains (ADOMs) and integration into the Fortinet Security Fabric, it is built to scale and automate operations while reducing both complexity and cost.
The 200G model is tailored for small to mid-sized deployments, offering robust functionality (e.g., management of up to 30 devices/virtual domains) while retaining a compact 1U rack-mount form factor.
By consolidating device management (firewalls, switches, APs, extenders) into a unified platform and enabling centralized firmware, signature and policy distribution, the FortiManager 200G helps organizations improve visibility, accelerate change, and maintain consistent security posture across distributed networks.

Key Features

• Single-pane console for deployment, monitoring and management of Fortinet security devices across your network.
• Centralised policy and object administration: create, install and revise policies (firewall, SD-WAN, endpoints) from one platform.
• Zero-Touch Provisioning (ZTP) support: rapid rollout of new devices, especially at branch/remote sites, via template-based configurations.
• Automation and orchestration support: REST APIs, scripting, connectors and “automation stitches” to reduce manual labour, speed operations and improve consistency.
• Multi-tenant administrative domains (ADOMs): support for segregating management domains and separating customer data—ideal for service providers or large enterprises with segmented operations.
• High availability and scalable architecture: supports supervisor + member nodes (fabric cluster) for resiliency and high performance in larger deployments.
• Full integration with the Fortinet Security Fabric: enables central distribution of security content, signatures, firmware images and updates across devices, including air-gapped environments.

Specifications

Here are key technical specifications for the FortiManager 200G appliance:

Form Factor & Hardware

• Rack-mountable 1U appliance.
• Dimensions: approx. 43.8 cm (width) × 4.4 cm (height) × 41.6 cm (depth).
• Weight: approx. 10.2 kg.

Connectivity & Interfaces

• 4 × 1000Base-T RJ-45 (Gigabit Ethernet) ports.
• 1 × console port (DB-9 or RJ-45 depending on region) for management.

Capacity & Performance

• Maximum managed devices/VDOMs: up to ~30 for this model.
• Sustained log rate: ~50 (units as specified by vendor).
• Daily log volume: approx. 2 GB/day in one vendor listing for this model.

Storage & Redundancy

• Built-in storage: two 4 TB hard drives (RAID-0 or RAID-1 supported) in one listing.
• Some listings indicate 8 TB storage capacity (for example “4 × RJ45 GE, 8 TB storage” listing) for this model.

Power & Environmental

• Typical operational power consumption: ~90.1 W.
• Input voltage: AC 100-240 V, 50/60 Hz.
• Operating conditions: 0 °C to 40 °C; humidity 20%-90% non-condensing.

Compliance & Safety

• Compliant with UL, CB, FCC Part 15 Class A, VCCI, RCM and other global certification marks.
