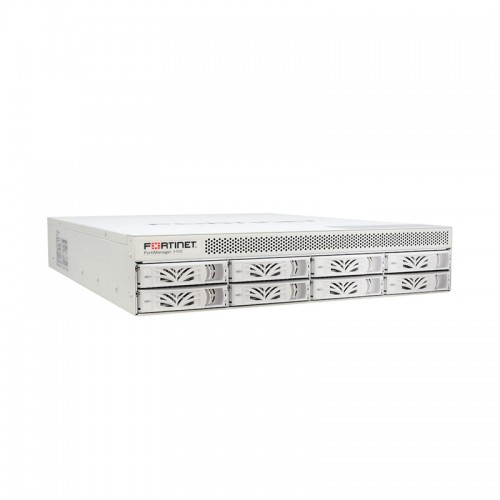

Fortinet FortiManager 410G

Overview

The Fortinet FortiManager 410G appliance is a high-performance centralized management platform designed for enterprise and service-provider networks to manage, orchestrate and automate security infrastructure from a single console. It enables network and security teams to deploy, monitor and control large fleets of Fortinet devices (firewalls, switches, access-points, SD-WAN, etc.) with consistency, efficiency and scale. Fermented for demanding environments, the 410G model supports up to 150 devices/VDOMs out of the box and includes high-capacity self-encrypting storage and front-to-back airflow in a 2 U rack form-factor.
As the authorized representative, Omega One offers this appliance with full vendor support, global warranty and integration into your Fortinet Security Fabric deployment.

Key Features

• Centralised policy, object and device management for Fortinet Security Fabric components (e.g., FortiGate firewalls, FortiSwitch, FortiAP, FortiExtender) — simplifying configuration, reduction of manual tasks, and improved consistency.
• Automation-driven workflows via REST APIs, scripts, connectors and built-in templates for large-scale, distributed deployments (including zero-touch provisioning) and SD-Branch/SD-WAN use-cases.
• Multi-tenancy/role-based access control (RBAC) and ADOM (Administrative Domain) support — enabling separation of domains, service-provider environments or large enterprise segments.
• High-capacity storage and logging support — designed to ingest and store high volume logs, provide backups, revision history and visibility for SOC/NOC workflows.
• Hardware integrity and resilience — hot-swappable drives, trusted platform module (TPM) encryption, redundant power, and rack-mount design with front-to-back airflow suitable for data-centre environments.
• Seamless integration with Fortinet’s global threat intelligence (FortiGuard) and with hybrid/cloud deployments for distributed and multi-cloud architectures.

Specifications

Model: FortiManager 410G (FMG-410G)
Device form-factor: 2 U rack-mount, front-to-back airflow
Management capacity (default): Up to 150 Fortinet devices/VDOMs
Storage: 8 × 4 TB hot-swappable drives (32 TB raw, ~24 TB usable after RAID) for self-encrypting storage
Interfaces:

• 4 × 1000Base-T RJ-45 Ethernet ports
• 2 × 1000Base-X SFP ports
• 1 × RJ-45 console port
• 2 × USB 3.0 Type A ports
  Power: Internal hot-plug power supply, AC 100-240 V, 50/60 Hz; power redundancy supported
  Dimensions & Weight: Width ~ 17.5 in (44.5 cm), Depth ~ 22.2 in (56.5 cm), Height 3.5 in (2U), Weight ~ 35.27 lbs (~16 kg)
  Environmental/Operating Conditions: Operating temperature 0-40 °C (32-104 °F); humidity 5-95% non-condensing
  Security/Compliance: Compliant with safety and regulatory certifications (FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB)
