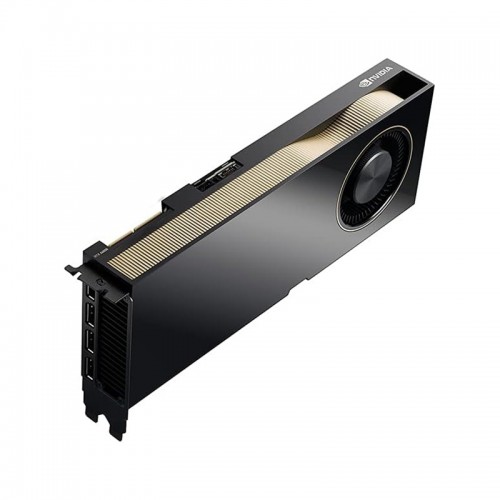

NVIDIA RTX A6000

Overview

The NVIDIA RTX A6000 is a high-performance graphics card designed for professionals in fields such as AI, data science, 3D rendering, and scientific computing. Built on the NVIDIA Ampere architecture, it delivers exceptional computational power and memory capacity, enabling users to tackle complex workloads with efficiency and speed.

Features

• CUDA Cores: 10,752
• Tensor Cores: 336
• RT Cores: 84
• GPU Memory: 48 GB GDDR6 with ECC
• Memory Interface: 384-bit
• Memory Bandwidth: 768 GB/sec
• System Interface: PCI Express 4.0 x16
• Display Connectors: 4x DisplayPort 1.4a
• Maximum Power Consumption: 300 W
• Form Factor: Dual-slot, full-height
• Thermal Solution: Active cooling
• ECC Support: Yes, for data integrity

Specifications

• Architecture: NVIDIA Ampere
• Process Technology: 8nm
• Transistor Count: 28.3 billion
• Die Size: 628.4 mm²
• Base Clock Speed: 1,455 MHz
• Boost Clock Speed: Up to 1,860 MHz
• VRAM Type: GDDR6
• VRAM Capacity: 48 GB
• ECC Memory: Yes
• PCIe Slot: PCIe 4.0 x16
• Display Outputs: 4x DisplayPort 1.4a
• Maximum Displays Supported: Up to 4x 5K displays
• Power Connectors: 1x 8-pin CPU
• Maximum Power Consumption: 300 W
• Thermal Solution: Active cooling
• Form Factor: Dual-slot, full-height
