Overview

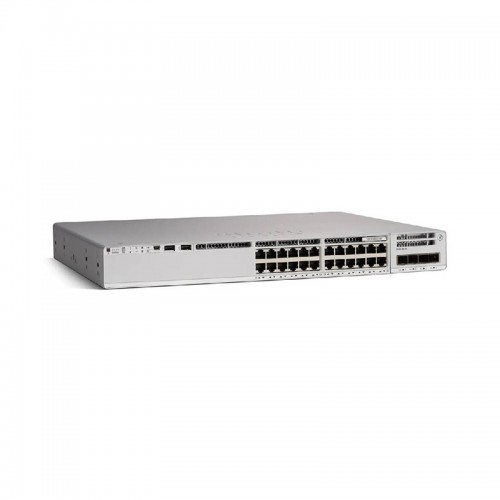

The Cisco Catalyst 9200 24PXG-E is a high-performance, enterprise-class access switch designed for modern campus networks with Power over Ethernet (PoE) capabilities. It provides 24 Gigabit Ethernet ports with 8 multi-gigabit (mGig) PoE+ ports, enabling high-speed connectivity and power delivery to devices such as wireless access points, IP phones, and IoT devices.
This switch supports advanced Layer 2 and Layer 3 features, integrated security, and Cisco DNA Center integration for automation, assurance, and simplified network management. Its stackable and energy-efficient design ensures high availability and scalability for enterprise access deployments.
Key Features
- 24 × Gigabit Ethernet ports with 8 × mGig PoE+ support for high-speed powered connectivity
- Advanced Layer 2 and Layer 3 switching capabilities for enterprise networks
- Stackable design using Cisco StackWise technology for simplified scaling and redundancy
- Integration with Cisco DNA Center for network automation, analytics, and assurance
- Security features including 802.1X, access control lists, and segmentation
- Redundant power supply and hot-swappable fan options for high availability
- Energy-efficient design optimized for dense deployments
- QoS, traffic shaping, and application-aware routing support
- Ideal for enterprise access layer, high-density PoE deployments, and IoT-ready networks
Specifications
Specification
Detail
Model
C9200-24PXG-E
Port Density
24 × 1G Ethernet ports, 8 × mGig PoE+ ports
Uplink Options
4 × 10G SFP+ uplinks
Switching Capacity
Up to 160 Gbps per switch
Forwarding Rate
Up to 77 Mpps
PoE/PoE+ Power Budget
Up to 715W total
Layer 2 Features
VLANs, STP, RSTP, VTP, Private VLANs, port channels
Layer 3 Features
OSPF, EIGRP, BGP, IS-IS, static routing, VRF support
High Availability
StackWise-160/80, redundant power supply, hot-swappable fans
Management / Monitoring
Cisco DNA Center, Cisco IOS XE CLI, SNMP, NetFlow, telemetry
Form Factor
1RU rackmount, stackable
Dimensions (W × H × D)
440 mm × 44 mm × 400 mm
Weight
Approx. 9 kg
Power Supplies
Dual hot-swappable PSU options
Operating Temperature
0 °C to 45 °C
Certifications
CE, FCC, UL, RoHS
Use Cases / Workload Fit
Enterprise access layer, high-density PoE deployments, wireless and IoT networks
Warranty / Support Options
Standard Cisco warranty; optional extended service and support plans available
