Overview

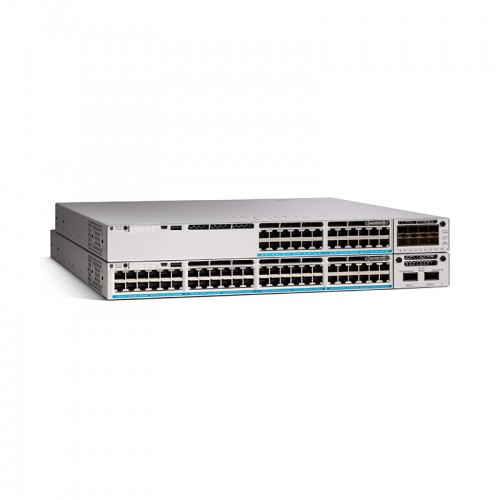

The Cisco Catalyst 9300 Series is a next-generation enterprise-class stackable switch designed for the access layer of modern campus networks. It delivers high performance, scalability, and advanced security for wired and wireless connectivity.
The 9300 Series is ideal for organizations that require secure, high-density access for endpoints and IoT devices while supporting advanced automation and analytics through Cisco DNA Center. With full stackability and modular uplinks, it simplifies deployment and provides high availability for mission-critical applications.
Key Features
- High-performance Layer 2 and Layer 3 access switch for enterprise networks
- Stackable architecture with Cisco StackWise-480 or StackWise Virtual for simplified management and redundancy
- Supports 1G, 10G, and 25G uplinks for flexible network design
- Enterprise-grade security including 802.1X, Cisco TrustSec, segmentation, and advanced threat protection
- Integration with Cisco DNA Center for automation, analytics, and network assurance
- Advanced QoS, application-aware routing, and traffic management
- Energy-efficient design with optional redundant power supplies
- High-density deployments for wired and wireless devices, including PoE/PoE+ support
- Modular uplinks and flexible stacking options for scalability
Specifications
Specification
Detail
Model
Cisco Catalyst 9300 Series
Port Density
24 or 48 ports per switch (1G mGig or 10G uplinks depending on model)
Uplink Options
1G, 10G, or 25G SFP/SFP+ ports
Switching Capacity
Up to 480 Gbps per stack
Forwarding Rate
Up to 360 Mpps per switch
PoE/PoE+ Budget
Up to 715W–1.44 kW depending on model and configuration
Layer 2 Features
VLANs, STP, RSTP, PVST+, port channels, private VLANs
Layer 3 Features
OSPF, EIGRP, BGP, VRF, static routing
High Availability
StackWise Virtual, redundant power supplies, hot-swappable fans
Management / Monitoring
Cisco DNA Center, CLI, SNMP, NetFlow, telemetry
Form Factor
1RU rackmount, stackable
Dimensions (W × H × D)
44 mm × 440 mm × 400 mm
Weight
Approx. 9 kg
Power Supplies
Dual hot-swappable PSU options
Operating Temperature
0 °C to 45 °C
Certifications
CE, FCC, UL, RoHS
Use Cases / Workload Fit
Enterprise access layer, high-density PoE deployments, IoT-ready networks, mission-critical applications
Warranty / Support Options
Standard Cisco warranty; optional extended service and support plans available
