Overview

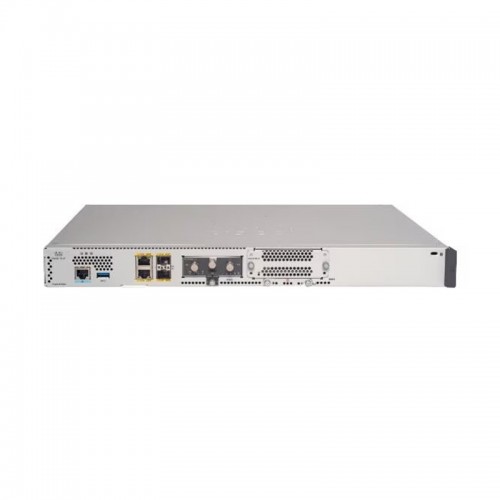

The Cisco Catalyst 8200 Series Router (C8200-1N-4T) is a high-performance enterprise router designed to deliver secure, reliable, and scalable WAN connectivity for branch offices, campuses, and enterprise networks. It supports advanced routing protocols, secure VPN connectivity, and integrated network services to optimize performance for cloud applications, voice, video, and data traffic.
The C8200-1N-4T provides enhanced security, automation, and centralized management capabilities, making it ideal for modern enterprise networks that demand high availability, flexible deployment options, and simplified operations.
Key Features
- High-performance routing with support for advanced WAN protocols and SD-WAN
- Four 10 Gigabit Ethernet (10G) interfaces for high-speed connectivity
- Integrated security features including firewall, VPN, and advanced threat protection
- Supports network automation and programmability with Cisco DNA Center and APIs
- Scalable design with modular interface options for growing branch or campus networks
- Redundant power and high availability options
- Centralized management with Cisco DNA Center or Cisco IOS XE CLI
- Optimized for cloud-ready WAN connectivity and secure branch deployments
- Supports QoS, traffic shaping, and application-aware routing for critical workloads
Specifications
Specification
Detail
Model
C8200-1N-4T
WAN Interfaces
4 × 10G SFP+ ports
Throughput
Up to 4 Gbps (IPsec VPN throughput may vary)
LAN Interfaces
1 × RJ45 management port, 1 × console port
Routing Protocols Supported
OSPF, EIGRP, BGP, IS-IS, SD-WAN routing
VPN Support
IPsec, DMVPN, FlexVPN, GETVPN
Security Features
Firewall, VPN, URL filtering, intrusion prevention, advanced malware protection
High Availability
Redundant power supply support, stateful failover
Management / Monitoring
Cisco DNA Center, Cisco IOS XE CLI, SNMP, NetFlow
Form Factor
1RU rackmount
Dimensions (W × H × D)
438 mm × 44 mm × 400 mm
Weight
Approx. 7.5 kg
Operating Temperature
0 °C to 45 °C
Certifications
CE, FCC, UL, RoHS
Use Cases / Workload Fit
Enterprise branch WAN, cloud connectivity, secure network access, SD-WAN deployments
Warranty / Support Options
Standard Cisco warranty; optional extended service and support plans available
