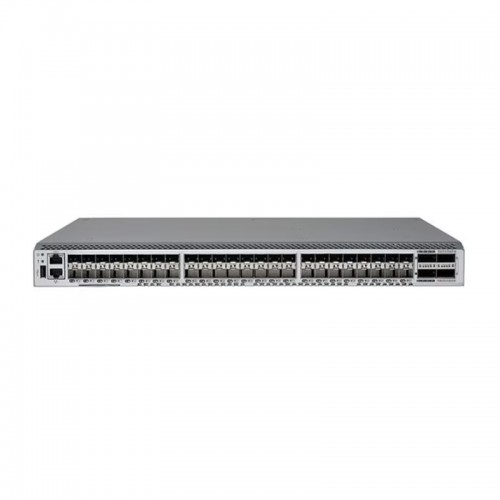

Dell EMC Connectrix DS-6620B 24P/48P V2 Switch

Overview

The Dell EMC Connectrix DS-6620B V2 is a high-performance Fibre Channel SAN switch in the Connectrix B-Series portfolio. It is designed to meet the scalability, performance, and reliability demands of medium to large enterprise SAN environments. The “24P/48P V2” designation indicates that the base unit comes with 24 active Fibre Channel ports, but it supports expansion up to 48 (or more in licensed variants). The V2 version brings enhancements such as support for FOS 9.0+ and slight changes in LED and port behavior.

This switch is well suited for SAN fabric backbone roles, ISL trunking, NVMe/FC traffic, and high-density SAN topologies.

Features

• High Port Density & Scalability: Base model ships with 24 active fibre channel ports; supports scaling to 48 ports, and in some variants up to 64 ports.
• Mixed Port Types: Offers SFP+ ports for host/target connections and QSFP ports for high-density ISL trunking or uplinks.
• Flexible Port Speeds: Supports operation at multiple speeds (e.g. 32 Gb/s, 16 Gb/s, 8 Gb/s) depending on optics and deployment scenario.
• Fabric OS and Software Enhancements: Requires Fabric OS 9.0 or later. Supports essential SAN features such as VSANs, VSAN trunking, ISL Trunking, NPV mode, Inter-VSAN routing, diagnostics and monitoring tools.
• Redundancy & Hot Swappable Components: Dual hot-swappable power supplies and multiple cooling fans for high availability.
• Airflow Options: Supports front-to-rear or rear-to-front airflow configurations to integrate into different data center cooling schemes.
• Diagnostics & Monitoring: Integrated diagnostics (including ClearLink diagnostic port) and visibility features for SAN health and performance monitoring.
• NVMe over Fibre Channel (NVMe/FC) Ready: Capable of handling mixed SCSI and NVMe traffic in the same fabric without hardware changes.
