Supermicro SYS-521GE-TNRT With L40S GPU Card

Description

Specification

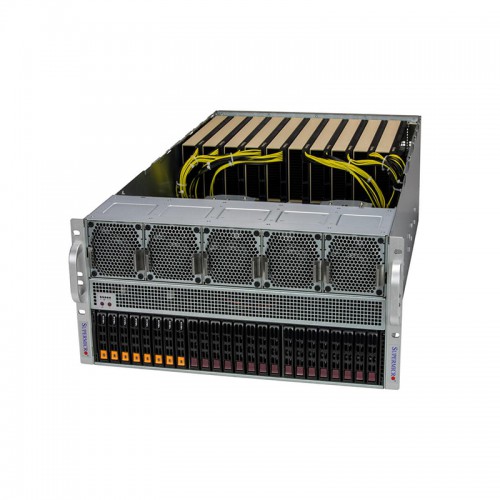

The Supermicro SYS-521GE-TNRT server is a powerful 5U rackmount system supporting 8 PCIe Gen4 GPUs and two high-performance Intel Xeon Sapphire Rapids (8558P) processors. This server is optimized for heavy workloads in machine learning, artificial intelligence, video processing, big data analytics, and 3D rendering.
A standout feature of this model is its Dual Root Complex configuration, which ensures balanced and optimized PCIe bandwidth distribution between the CPUs and GPUs. As a result, GPU performance in multi-threaded workloads is significantly enhanced.

8x L40S GPUs – Extreme AI computing power
✅ 96 Xeon cores – Next-generation performance
✅ High-speed DDR5 – Memory up to 3TB
✅ PCIe 4.0 – Ultra-fast connectivity
✅ 7x NVMe – High-speed storage
✅ TPM 2.0 – Hardware-level security
✅ Dual Root – Simultaneous GPU performance
✅ Advanced cooling – Optimized for 8 GPUs
✅ 4x GbE – Flexible networking

Key Applications
• High Performance Computing (HPC)
• VDI
• AI/Deep Learning Training
• Media/Video Streaming
• Cloud Gaming
• Animation and Modeling
• Design & Visualization
• 3D Rendering
• Diagnostic Imaging

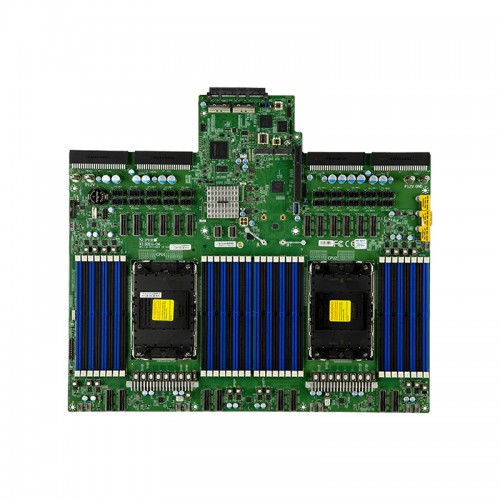

CPU Processing Power
Equipped with two Intel Xeon 8558P processors, each offering 48 cores, for a total of 96 logical cores with 192 processing threads.
A massive 260MB L3 cache enhances performance in complex computations and reduces latency.
Each CPU has a 350W TDP, reflecting true high-performance computing capabilities.
Includes integrated Intel accelerators:

• DSA: Optimizes data movement between memory and devices
• IAA: Accelerates analytics workloads
• QAT: Improves cryptography and compression performance
• DLB: Manages I/O workloads in distributed systems

? Main Memory
Features 32x 96GB DDR5 5600MT/s ECC Registered modules, providing approximately 3TB of high-bandwidth, high-capacity memory for data-intensive workloads and large AI models.
ECC Registered memory corrects data errors in real-time, ensuring stability and computational accuracy for mission-critical projects.

? Storage
Includes:

• 2x 960GB SATA SSDs (5400 PRO 960GB SATA 3D TLC) for boot and OS
• 7x 3.2TB NVMe U.2 CD6-V drives, delivering ultra-fast read/write speeds with 3 DWPD endurance over 5 years—ideal for large databases and heavy workloads.
  This combination of SATA for boot and NVMe for data processing enables both fast performance and cost-effective storage management.

? Graphics Cards (GPU)
Supports 8x NVIDIA L40S 48GB GDDR6 GPUs based on Ada Lovelace architecture, purpose-built for AI and graphics-intensive tasks.
L40S features advanced Ray Tracing and Tensor Cores for deep learning and rendering workloads.
Integrated PCIe Gen4 provides higher bandwidth between CPU and GPU, eliminating bottlenecks.

? Networking
4-port Gigabit Ethernet adapter with Intel i350-AM4 controller, supporting Link Aggregation and SR-IOV for enhanced speed and network virtualization in data centers.

? Security
Built-in TPM 2.0 module enables hardware-based encryption, key storage, and protection of sensitive organizational data.
Secure Boot and firmware integrity features prevent malware infiltration at the BIOS level.

✅ Up to 5x faster than regular servers!
With this server, you can reduce AI model training times or heavy video processing workloads from days to hours. This means faster time-to-market and a competitive edge.
✅ Minimize infrastructure and energy costs.
The optimized 5U chassis with Supermicro’s advanced cooling reduces rack space and power consumption compared to similar 2U or 3U servers, significantly lowering your expenses.
✅ Ensure the security of your sensitive data.
The built-in TPM 2.0 module with hardware authentication and key encryption ensures your organization’s critical data stays protected from hackers and malware.
✅ Future-proof investment; no need for upgrades for years.
Equipped with 96-core 4th Gen Intel Sapphire Rapids processors and high-capacity DDR5 memory, this server is designed to easily handle complex, demanding projects in the years to come.
✅ Support for the latest connectivity and storage standards.
PCIe Gen4 for both GPUs and NVMe drives minimizes CPU-GPU bottlenecks, ensuring you always get maximum server performance.
