Overview

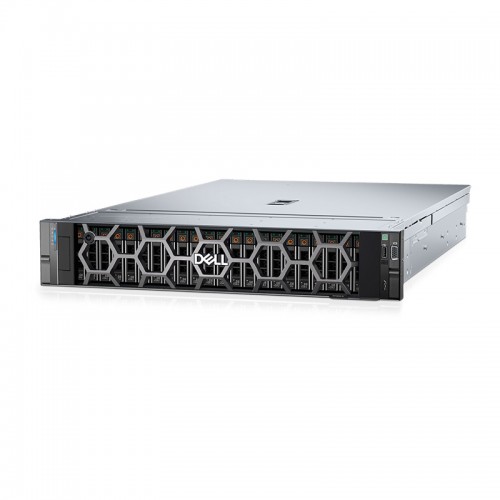

The Dell EMC PowerEdge R760 is a high-performance, versatile 2U dual-socket rack server designed to deliver exceptional compute, memory, storage, and expansion capabilities for demanding enterprise workloads. It is purpose-built for scalable infrastructure environments, covering use cases such as virtualization, databases, AI/ML inference, high-performance computing (HPC), software-defined storage, and data analytics.
The server supports the latest Intel Xeon Scalable processors (including 4th and 5th generation), features a next-generation Smart Flow chassis for optimal cooling, and offers a broad set of storage, I/O, accelerator, and network options. Its modular design and support for high-density configurations allow organizations to tailor the system to evolving performance and capacity needs.
Features
- High Compute Flexibility: Supports up to two Intel Xeon Scalable or Xeon Max processors (4th or 5th generation), enabling high core counts (up to 56 cores for 4th Gen, up to 64 cores for 5th Gen) for compute-intensive workloads.
- Advanced Memory Architecture: Up to 32 DDR5 RDIMM slots, providing high throughput and capacity for modern memory demands.
- Rich Accelerators & GPU Support: Capable of hosting up to 2 double-width GPUs (e.g. 350 W class) or up to 6 single-wide accelerator cards, supporting AI/ML inference, GPU compute, and DPU workloads.
- Flexible Storage Options: Supports combinations of SAS, SATA, NVMe (U.2 and E3.S), with configurations up to 24 x NVMe or mixed drive layouts.
- Expandable I/O & Networking: Multiple riser options (Gen4 and Gen5), support for OCP 3.0 NICs, built-in LOM or OCP NIC up to high-speed Ethernet (e.g. 100 GbE, 200 GbE) combined with support for DPUs.
- Thermal & Airflow Innovation: Smart Flow chassis design optimizes airflow to maintain performance even at high power densities in air-cooled environments.
- Robust Security & Lifecycle: Built-in trusted supply chain, silicon root-of-trust, secure boot, role-based access, Multi-Factor Authentication (MFA), and firmware integrity features guard the system from hardware to firmware layers.
- Redundancy & High Availability: Multiple hot-swap, redundant components including power supplies and fans, enabling 24/7 uptime demands.
- Universal Ecosystem Compatibility: Compatible with Dell’s management stack, monitoring, and orchestration tools to integrate into enterprise infrastructure environments.
Specifications
Component
Details
Form Factor
2U rackmount, dual-socket server
Processors (CPU)
Up to 2 × Intel Xeon Scalable (4th Gen) or Xeon Scalable / Xeon Max (5th Gen) – Up to 56 cores per CPU (4th Gen) – Up to 64 cores per CPU (5th Gen)
Memory
32 × DDR5 RDIMM slots Supports high-speed memory (up to 4800 MT/s or more depending on CPU generation) Maximum capacity (e.g. up to 8 TB)
Storage / Drive Bays
Front: up to 12 × 3.5″ SAS/SATA or mixed optional Or: up to 24 × 2.5″ SAS/SATA/NVMe Also supports NVMe E3.S form factor drives in appropriate backplane Rear: additional 2–4 × 2.5″ drives depending on configuration
Storage Controllers
Internal options: PERC H965i, H755, H755N, H355, or HBA355i External: HBA355e, PERC H965e Boot optimized: BOSS-N1 (2 × M.2 NVMe SSDs) Software RAID: S160
GPU / Accelerator Support
Up to 2 double-wide accelerators (e.g. 350 W class) Or up to 6 single-wide cards Supports DPUs / NIC offload via OCP 3.0 slot
Networking / NICs
Integrated LOM: up to 2 × 1 GbE OCP NIC 3.0 options: 1 GbE ×4, 10 GbE, 25 GbE, 100 GbE, 200 GbE Support for MIC (management / DPU) card: 25/100/200 GbE
I/O / Expansion Slots
Multiple Gen4 / Gen5 riser slot options, up to 8 PCIe slots (varies by configuration and CPU)
Chassis / Cooling
Smart Flow airflow design Optimized cooling for high core-count CPUs with air-cooled infrastructure
Power Supply Options
Multiple redundant hot-swappable PSUs (e.g. from ~700 W to >2800 W, Titanium / Platinum efficiency, AC / HVDC / low-voltage options depending on region)
Dimensions (H × W × D)
Approx. 86.8 mm × 482.0 mm × 700.7 mm (excluding bezel/fan handles)
Environmental / Operating Conditions
Operating temperature: ~10–35 °C continuous (altitude up to ~900 m), higher range in limited duty Humidity: non-condensing 8% to ~80% RH Non-operating: –40 °C to 65 °C
Security Features
Silicon root of trust, secure supply chain, firmware integrity, secure boot, role-based access, MFA support
Management & Integration
Full support for Dell’s iDRAC, OpenManage, Lifecycle Controller, monitoring and orchestration services
