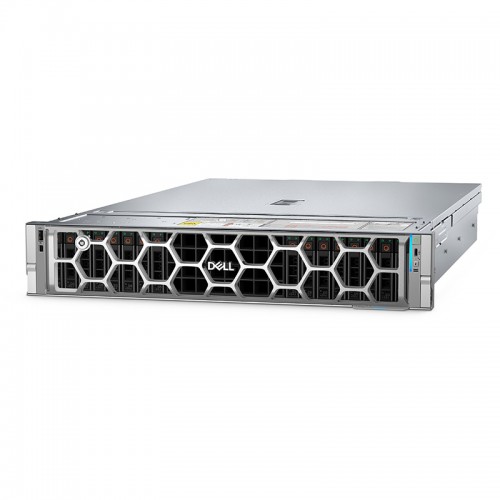

Dell EMC PowerEdge R7715

Overview

The Dell EMC PowerEdge R7715 is a high-performance, single-socket 2U rack server designed to meet the demands of modern data centers. Powered by the 5th Generation AMD EPYC 9005 Series processors, it offers exceptional scalability, security, and energy efficiency. Ideal for workloads such as virtualization, AI/ML, and software-defined storage, the R7715 provides a versatile platform for enterprise IT environments.

Features

• Single-Socket Design: Supports one AMD EPYC 9005 Series processor, delivering up to 160 cores for optimal performance.
• Memory Capacity: Equipped with 24 DDR5 DIMM slots, supporting up to 6TB of memory at speeds up to 6400MT/s.
• Storage Flexibility: Offers various storage options, including 2.5" and 3.5" hot-plug SAS, SATA, Near Line SAS, and NVMe SSDs, with support for up to 10 drives.
• PCIe Expansion: Features up to 8 PCIe Gen5 slots, allowing for extensive expansion capabilities.
• Power Supply Options: Provides multiple hot-swap redundant power supply configurations, including 800W to 3200W Titanium-rated units.
• Security Features: Incorporates a silicon root of trust, secure boot, and system lockdown to ensure firmware integrity and prevent unauthorized configuration changes.
• Cooling Efficiency: Designed with SmartCooling technology and improved heat sinks for enhanced thermal performance.

Specifications

• Form Factor: 2U Rack Server
• Processor: 1 x AMD EPYC 9005 Series (up to 160 cores)
• Memory:
• 24 DDR5 DIMM slots
• Up to 6TB capacity
• Speeds up to 6400MT/s
• Storage:
• Up to 10 x 2.5" or 3.5" drives
• Supports SAS, SATA, Near Line SAS, and NVMe SSDs
• RAID Controllers: PERC H365i, H965i, H975i
• PCIe Slots: Up to 8 x16 Gen5 slots
• Networking: Dual 1GbE LOM
• Power Supply:
• Hot-swap redundant options
• 800W to 3200W Titanium-rated
• Cooling: SmartCooling with improved heat sinks
• Security: Silicon root of trust, secure boot, system lockdown
