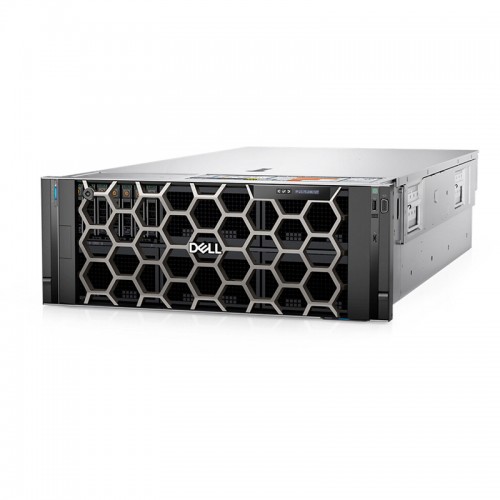

Dell EMC PowerEdge R960

Overview

The Dell EMC PowerEdge R960 is a high-performance, 4U rack server designed to handle the most demanding enterprise workloads. Equipped with up to four 4th Generation Intel® Xeon® Scalable processors, it delivers exceptional processing power and scalability. With support for up to 64 DDR5 DIMMs, the R960 offers a maximum memory capacity of 16TB, making it ideal for large in-memory databases and data-intensive applications. Its flexible storage options include support for up to 24 NVMe drives, ensuring fast data access and reliability.

Key Features

• Processor Support: Up to four 4th Generation Intel® Xeon® Scalable processors, each with up to 60 cores, providing robust computational capabilities.
• Memory Capacity: Supports up to 64 DDR5 DIMMs, allowing for a maximum of 16TB of memory to handle large datasets and complex applications.
• Storage Flexibility: Offers various storage configurations, including up to 24 NVMe drives, to meet diverse data storage needs.
• Expansion Slots: Equipped with 12 PCIe Gen5 slots, enabling extensive I/O expansion for additional network cards, storage controllers, and GPUs.
• Redundant Power Supply: Features four AC or DC power supply units with 2+2 redundancy, ensuring high availability and reliability.
• Networking Options: Provides flexible networking capabilities, including 1GbE, 8GbE, and up to 100GbE through PCIe or OCP 3.0 network interface cards.

Specifications

• Form Factor: 4U Rack Server
• Processor Options: Up to four 4th Generation Intel® Xeon® Scalable processors
• Core Count per Processor: Up to 60 cores
• Memory Slots: 64 DDR5 DIMM slots
• Maximum Memory Capacity: 16TB
• Storage Configurations:
• Up to 24 x 2.5-inch NVMe SSDs
• Up to 16 x EDSFF E3.S Gen5 NVMe SSDs
• Combination of SAS/SATA and NVMe drives
• PCIe Slots: 12 PCIe Gen5 slots
• Power Supply: Four AC or DC power supply units with 2+2 redundancy
• Networking: 1GbE, 8GbE, and up to 100GbE via PCIe or OCP 3.0 NICs
