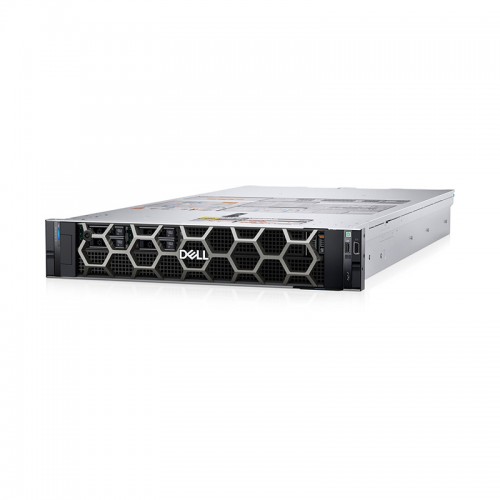

Dell EMC PowerEdge XE9640

Overview

The Dell EMC PowerEdge XE9640 is a high-performance, liquid-cooled 2U rack server engineered to meet the rigorous demands of artificial intelligence (AI), machine learning (ML), deep learning (DL), and high-performance computing (HPC) workloads. Designed for scalability and efficiency, it offers optimal GPU density and advanced cooling solutions, making it an ideal choice for data centers and enterprises seeking to accelerate their computational capabilities.

Features

• Dual-Socket Architecture: Supports up to two 4th or 5th Generation Intel Xeon Scalable processors, providing robust processing power for complex tasks.
• GPU Flexibility: Accommodates up to four GPUs, including NVIDIA H100 or Intel Data Center Max 1550 GPUs, interconnected via NVLink or Xe Link for high-speed data transfer.
• Liquid Cooling System: Incorporates advanced liquid cooling technology to efficiently manage thermal output, ensuring optimal performance in dense configurations.
• Memory Capacity: Offers up to 2TB of DDR5 RDIMM memory, with configurations supporting 16 to 32 DIMMs, depending on the GPU setup.
• Storage Options: Equipped with up to four 2.5-inch NVMe SSDs, providing rapid data access and storage scalability.
• High-Speed Networking: Features PCIe Gen5 slots and optional OCP 3.0 networking cards to support high-bandwidth connections.
• Remote Management: Includes iDRAC9 for advanced remote management capabilities, facilitating efficient system monitoring and maintenance.
• Redundant Power Supply: Supports up to four AC or DC power supply units with N+N redundancy, ensuring continuous operation and reliability.

Specifications

• Form Factor: 2U Rack Server
• Processor Support: Up to two 4th or 5th Generation Intel Xeon Scalable processors
• GPU Support: Up to four NVIDIA H100 or Intel Data Center Max 1550 GPUs
• Memory: Up to 2TB DDR5 RDIMM (16–32 DIMMs)
• Storage: Up to four 2.5-inch NVMe SSDs
• Networking: PCIe Gen5 slots, optional OCP 3.0 networking cards
• Power Supply: Up to four AC or DC PSUs with N+N redundancy
• Cooling: Liquid cooling system
• Management: iDRAC9 remote management
