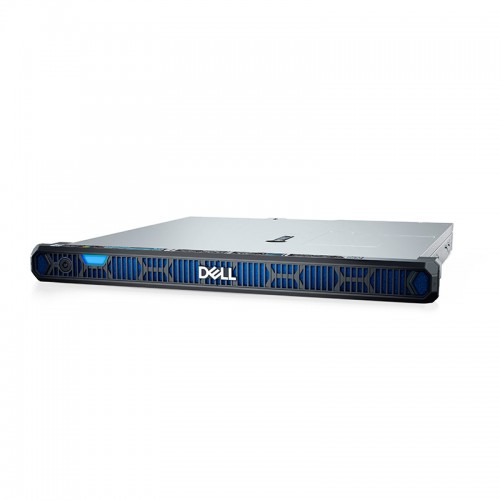

Dell EMC PowerEdge XR5610

Overview

The Dell EMC PowerEdge XR5610 is a rugged, short-depth 1U edge server designed to meet the demanding requirements of telecom, defense, retail, and other edge computing environments. As the successor to the popular XR11, the XR5610 offers enhanced performance, scalability, and reliability for complex workloads at the edge.

Features

• Form Factor: 1U short-depth rack server optimized for edge deployments.
• Processor Options: Supports a single 4th or 5th generation Intel Xeon Scalable processor with vRAN Boost, offering up to 64 cores and a maximum TDP of 350W.
• Memory: Equipped with 8 DDR5 RDIMM slots, supporting up to 1TB of memory at 4800MT/s.
• Storage: Accommodates up to 30.72TB using 4 x 2.5" SAS/SATA/NVMe drives.
• Networking: Includes 4 x 25GbE SFP28 ports and an optional OCP 3.0 card for additional connectivity.
• Remote Management: Features iDRAC9 with Lifecycle Controller for efficient system management.
• Rugged Certifications: Designed to operate in environments up to 55°C, meeting NEBS and military standards for reliability.

Specifications

• Processor: Single 4th or 5th generation Intel Xeon Scalable processor with vRAN Boost.
• Memory: 8 x DDR5 RDIMM slots, supporting up to 1TB at 4800MT/s.
• Storage: 4 x 2.5" SAS/SATA/NVMe drives, supporting up to 30.72TB.
• Networking: 4 x 25GbE SFP28 ports; optional OCP 3.0 card.
• Remote Management: iDRAC9 with Lifecycle Controller.
• Rugged Certifications: Supports up to 55°C ambient temperature; meets NEBS and military standards.
• Power Supply: Redundant power supply options for high availability.
• Expansion Slots: PCIe slots for additional expansion cards.
