Overview

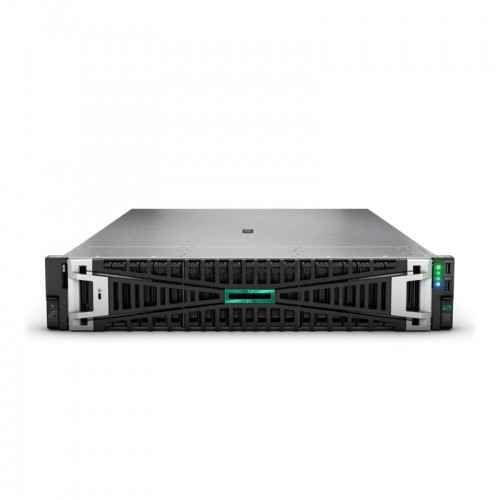

The HPE ProLiant DL380 Gen11 (8 SFF) is a 2U, dual-processor rack server optimized for enterprise workloads requiring a balance of compute, memory, and storage density. It is built for versatile deployment in virtualization, software-defined storage, database, hybrid cloud, and general-purpose server roles. The 8 SFF (small form factor) drive bay configuration allows flexible support for SAS, SATA, or NVMe storage with expansion potential to higher drive counts. Featuring support for fourth- and fifth-generation Intel® Xeon® Scalable processors, DDR5 memory, PCIe Gen5, and advanced security and management capabilities, it is designed to deliver performance, scalability, and reliability for modern data center demands.
Features
- Supports dual Intel® Xeon® Scalable (4th / 5th Gen) processors — up to 64 cores per processor (depending on model)
- High memory capacity via DDR5 SmartMemory, up to 8 TB (32 DIMMs)
- PCIe 5.0 slots and OCP 3.0 expansion for high bandwidth I/O
- 8 hot-plug SFF drive bays with support for SAS, SATA, and NVMe (via appropriate backplanes)
- Expandable drive support (e.g. optional drive cages) to larger SFF counts
- Integrated Lights-Out 6 (iLO 6) for remote management, monitoring, and firmware lifecycle management
- Security “by design”: silicon root of trust, secure boot, memory encryption, firmware protection
- Support for GPU acceleration (up to certain number of single- or double-wide GPUs, depending on configuration)
- Hot-plug redundant power supplies and fans for high availability
- Flexible RAID / storage controller support (tri-mode, cache, etc.)
- Designed for enterprise-class uptime, diagnostics, and serviceability
Specifications
Below are typical baseline / maximum specifications. Always verify with your specific SKU or configuration.
Category
Specification
Form Factor
2U rackmount server
Drive Bays
8 × SFF (2.5") hot-plug (front)
Expandability
Upgradable to more SFF drive bays via add-on cages
Processor Support
Dual Intel Xeon Scalable (4th / 5th Generation)
Maximum Cores (per CPU)
Up to 64 cores (model dependent)
Memory
Up to 8 TB DDR5 (32 DIMMs total, 16 per CPU)
Memory Speed
Up to ~4800–5600 MT/s (model / memory type dependent)
Expansion Slots
Multiple PCIe Gen5 slots + OCP 3.0 slot(s)
Management
HPE iLO 6 (with embedded management, remote control, firmware management)
Storage Interface
Backplanes supporting SAS, SATA, NVMe (tri-mode)
GPU Support
Up to 8 single-wide or 3 double-wide GPUs (depending on cooling and PSU)
Power Supply
Dual hot-plug power supplies (e.g. 800 W, 1000 W, or higher, Titanium / Flex-Slot types)
Cooling / Fans
Hot-plug redundant fans, advanced airflow design
Security Features
Silicon root of trust, secure boot, memory encryption, firmware verification
Warranty
Standard 3/3/3 (parts / labor / onsite) (may vary by region or service contract)
