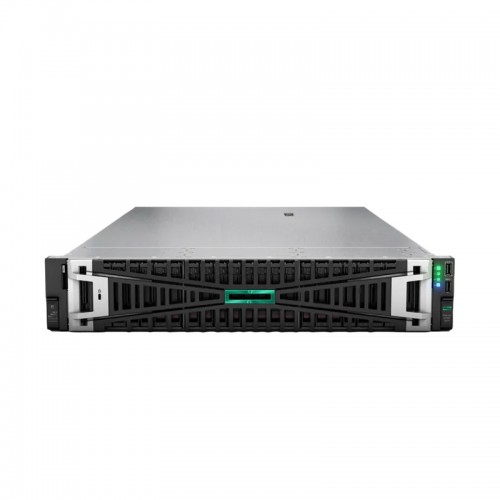

HPE ProLiant DL560 Gen11

Overview

The HPE ProLiant DL560 Gen11 is a high-performance, four-socket (4S) server housed in a compact 2U chassis. Designed for enterprise workloads, it delivers exceptional scalability and reliability, making it ideal for virtualization, server consolidation, compute-intensive applications, business processing, and in-memory database analytics.

Features

• Processor: Supports up to four 4th Generation Intel® Xeon® Scalable processors, offering up to 60 cores per processor, with a thermal design power (TDP) of 350W.
• Memory: Equipped with 64 DIMM slots, supporting up to 16 TB of HPE DDR5 SmartMemory at speeds up to 4800 MT/s.
• Storage: Offers flexible storage configurations with 8, 16, or 24 SFF SAS/SATA/NVMe drive bays, plus support for up to 12 E3.S SSDs.
• Expansion: Includes six PCIe Gen5 x16 slots and two OCP 3.0 slots for enhanced I/O throughput and reduced latency.
• Graphics: Supports up to six single-wide or two double-wide GPUs, including NVIDIA H100 80GB PCIe and NVIDIA L40 48GB PCIe Accelerators, to accelerate graphics-intensive workloads.
• Management: Features HPE Integrated Lights-Out 6 (iLO 6) for secure remote management and monitoring.
• Security: Incorporates HPE Silicon Root of Trust for firmware integrity and automated recovery from security events.
• Energy Efficiency: ENERGY STAR certified, with power-saving features like variable fan control and low power states.
