Overview

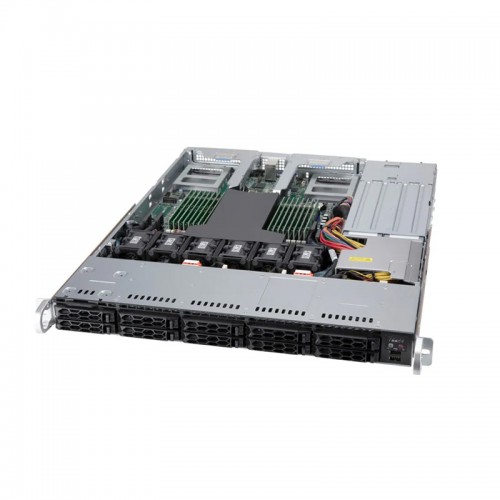

The Supermicro AS-1114CS-TNR is a high-density, 1U server designed for cloud, networking, and storage applications. It supports a single AMD EPYC™ 7002 / 7003 series processor (up to 280W TDP) and offers a versatile platform for software-defined infrastructure, storage appliances, network functions, edge/cloud nodes, and content delivery workloads. Its compact form factor, flexible I/O, and rich feature set make it suitable for data centers where space, performance, and connectivity matter.
This server is built with scalability in mind, offering multiple expansion options (PCIe, AIOM), abundant memory capacity, and support for various drive types. It also incorporates advanced security features and chassis design targeted for reliability in demanding operations.
Key Features
- Single-socket design supporting AMD EPYC 7002 / 7003 series CPUs
- High memory capacity via 16 DIMM slots supporting up to 4 TB DDR4-3200 ECC RDIMM / LRDIMM
- Dual PCIe 4.0 ×16 Full-Height, Half-Length (FHHL) expansion slots
- Two AIOM (OCP 3.0) slots for flexible networking / NIC modules
- Front panel: 10 hot-swap 2.5″ drive bays (SATA3 by default) with optional support for SAS / NVMe via add-on kit
- Onboard M.2 slots (PCIe 4.0 x4) supporting various lengths (2242 / 2260 / 2280 / 22110)
- Redundant dual power supplies (860W, Platinum level) in 1+1 configuration
- Complete system management and monitoring: IPMI 2.0, KVM-over-LAN, firmware management, health sensors
- Security features: TPM, cryptographically signed firmware, secure boot, firmware recovery, system lockdown
- Compact 1U rack design with optimized cooling and airflow
- Applications: network appliances, storage servers, private/hybrid cloud nodes, content delivery, AI inference
Specifications
Below is a representative specifications table for the AS-1114CS-TNR. Depending on your specific build or configuration, some numbers may vary.
Specification
Detail / Range
Processor / CPU Support
Single AMD EPYC 7002 / 7003 series (Socket SP3)
Maximum CPU TDP Supported
Up to 280W (air-cooled)
Memory / DIMMs
16 DIMM slots; up to 4 TB DDR4-3200 ECC RDIMM / LRDIMM
Expansion Slots
2 × PCIe 4.0 ×16 FHHL slots
AIOM / OCP Slots
2 AIOM (OCP 3.0 compatible) slots
Drive Bays
10 × 2.5″ hot-swap bays (default SATA); optional support for SAS / NVMe via kit
M.2 Slots
2 × M.2 PCIe 4.0 x4 (support lengths 2242 / 2260 / 2280 / 22110)
Power Supplies
Dual 860W Platinum level, redundant, 1+1 configuration
Chassis / Form Factor
1U rackmount (CSE-LB16TS series chassis)
Dimensions (W × H × D)
437 mm × 43 mm × 597 mm (17.2″ × 1.7″ × 23.5″)
Weight
Net: ~ 11.3 kg (25 lbs) ; Gross / rack-ready weight more
Cooling / Fans
6 counter-rotating 40×40×56 mm fans with PWM and thermal control
Network / I/O
AIOM / user-selected NIC modules; dedicated BMC LAN port; standard USB, VGA, COM ports
Security & Management
TPM 2.0, secure boot, signed firmware, IPMI 2.0, KVM-over-LAN, system monitoring
Use Cases / Workload Fit
Storage head, network appliance, cloud edge node, content delivery, AI inference server, virtualization launch node
Operating Conditions
Temperature: ~10 °C to 35 °C operating; Humidity non-condensing
Warranty / Support Options
Base warranty standard (e.g. 1 year); optional extended service plans available
