Overview

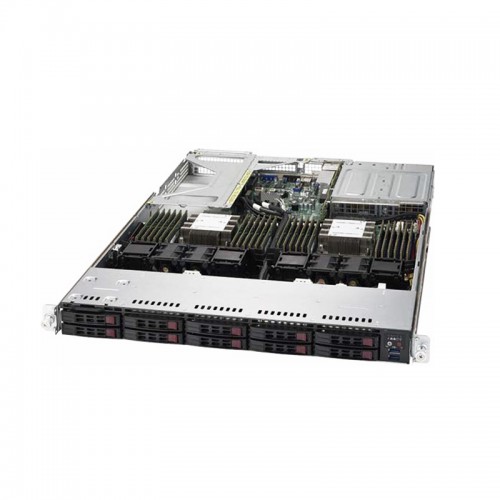

The Supermicro SYS‑1029U‑E1CRT is a 1U high-performance server designed for cloud, storage, virtualization, and enterprise workloads. It supports a single Intel® Xeon® Scalable processor with high memory capacity and flexible storage options. The server is optimized for dense data center deployments and applications that require high I/O throughput, including software-defined storage, database servers, virtualization, and edge computing.
With advanced management capabilities, redundant power options, and optimized airflow, the SYS‑1029U‑E1CRT delivers reliability, efficiency, and scalable performance for modern IT infrastructures.
Key Features
- Single-socket design supporting Intel® Xeon® Scalable (3rd Gen) processors
- Up to 16 DDR4 DIMM slots supporting ECC RDIMM / LRDIMM memory modules
- High-density storage with 10 hot-swappable 2.5″ NVMe/SATA/SAS drive bays
- Multiple PCIe 4.0 expansion slots for GPUs, NICs, or storage controllers
- Dual 860W Titanium-level hot-plug redundant power supplies (1+1)
- Advanced system management: IPMI 2.0, KVM-over-LAN, Supermicro Server Manager
- Security features including TPM 2.0, secure boot, firmware validation, and system lockdown
- Optimized thermal design and airflow for 1U rack deployments
- Supports GPU acceleration for AI/ML and HPC workloads
- Suitable for cloud infrastructure, virtualization, storage, and high-performance computing workloads
Specifications
Specification
Detail
Processor / CPU Support
Single Intel® Xeon® Scalable (LGA 4189), 3rd Gen
Maximum CPU TDP Supported
Up to 280W
Memory / DIMMs
16 DIMM slots; DDR4‑3200 ECC RDIMM / LRDIMM, up to 4 TB
Drive Bays / Storage
10 × 2.5″ hot-swappable NVMe/SATA/SAS drives
M.2 Slots
2 × M.2 PCIe 4.0 x4 for boot or cache devices
PCIe / Expansion Slots
Multiple PCIe 4.0 x16 / x8 slots for GPU, NIC, or storage expansion
Power Supplies
Dual 860W Titanium-level hot-plug redundant (1+1)
Chassis / Form Factor
1U rackmount
Dimensions (W × H × D)
437 mm × 43 mm × 597 mm
Weight
Net: ~11.3 kg (25 lbs)
Cooling / Fans
Hot-swappable PWM fans with optimized airflow design
Network / Connectivity
AIOM / OCP 3.0 slots; dedicated BMC LAN port; standard USB, VGA, COM ports
Security / Firmware Protections
TPM 2.0, secure boot, signed firmware, system lockdown
Management / Monitoring
IPMI 2.0, KVM-over-LAN, health sensors, system monitoring, firmware updates
Use Cases / Workload Fit
Cloud infrastructure, virtualization, storage servers, AI/ML, HPC workloads
Operating Environment
10 °C to 35 °C; humidity non-condensing
Warranty / Support Options
Standard warranty (typically 1 year); optional extended service and support plans
