Overview

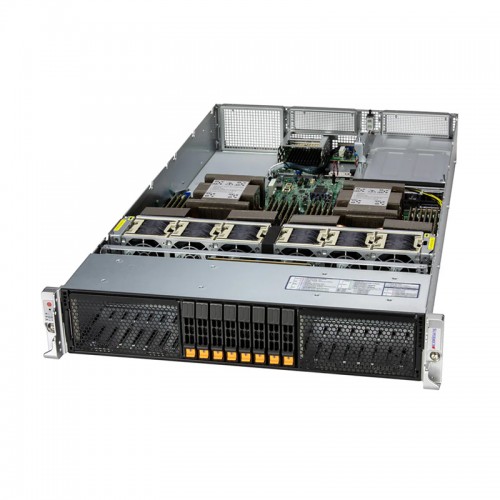

The Supermicro SYS‑222HA‑TN is a 2U dual-socket server designed for high-performance computing, enterprise storage, AI/ML workloads, and virtualization. It supports dual Intel® Xeon® Scalable processors and a large memory capacity, making it suitable for demanding applications such as cloud computing, database management, software-defined storage, and high-performance analytics.
With flexible storage options, multiple expansion slots, redundant power supplies, and advanced management features, the SYS‑222HA‑TN ensures reliable, scalable, and efficient operation for modern data centers and edge computing environments.
Key Features
- Dual-socket design supporting Intel® Xeon® Scalable (3rd Gen) processors
- Up to 32 DDR4 DIMM slots supporting ECC RDIMM / LRDIMM memory modules
- High-density storage with 24 front hot-swappable 2.5″ NVMe/SATA/SAS drive bays
- Multiple PCIe 4.0 expansion slots for GPUs, NICs, or storage controllers
- Dual 1,200W Titanium-level hot-plug redundant power supplies (1+1)
- Advanced system management: IPMI 2.0, KVM-over-LAN, Supermicro Server Manager
- Security features including TPM 2.0, secure boot, firmware validation, and system lockdown
- Optimized thermal and airflow design for 2U high-density rack deployments
- Supports GPU acceleration for AI/ML, HPC, and virtualization workloads
- Ideal for cloud infrastructure, storage, virtualization, and high-performance computing applications
Specifications
Specification
Detail
Processor / CPU Support
Dual Intel® Xeon® Scalable (LGA 4189), 3rd Gen
Maximum CPU TDP Supported
Up to 270W per processor
Memory / DIMMs
32 DIMM slots; DDR4‑3200 ECC RDIMM / LRDIMM
Drive Bays / Storage
24 × 2.5″ hot-swappable NVMe/SATA/SAS drives
M.2 Slots
2 × M.2 PCIe 4.0 x4 for boot or cache devices
PCIe / Expansion Slots
Multiple PCIe 4.0 x16 / x8 slots for GPU, NIC, or storage expansion
Power Supplies
Dual 1,200W Titanium-level hot-plug redundant (1+1)
Chassis / Form Factor
2U rackmount
Dimensions (W × H × D)
437 mm × 88 mm × 730 mm
Weight
Net: ~25 kg; Gross: ~35 kg (approx.)
Cooling / Fans
Hot-swappable PWM fans with optimized airflow design
Network / Connectivity
OCP 3.0 slots for networking modules; dedicated BMC LAN port
Security / Firmware Protections
TPM 2.0, secure boot, signed firmware, system lockdown
Management / Monitoring
IPMI 2.0, KVM-over-LAN, health sensors, system monitoring, firmware updates
Use Cases / Workload Fit
High-performance computing, cloud infrastructure, virtualization, storage servers, AI/ML workloads
Operating Environment
10 °C to 35 °C; humidity non-condensing
Warranty / Support Options
Standard warranty (typically 1 year); optional extended service and support plans
