Overview

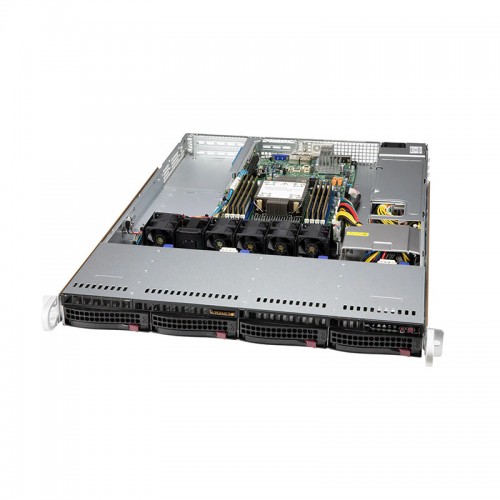

The Supermicro SYS‑510P‑WT is a 1U high-performance single-socket server optimized for storage-intensive workloads, cloud, edge, and enterprise applications. It is designed to deliver high I/O throughput, large memory capacity, and flexible storage configurations in a compact form factor. With support for NVMe, SATA, and SAS drives, this server is ideal for software-defined storage, virtualization, and database applications.
Its robust chassis, advanced thermal design, redundant power, and integrated management capabilities make it suitable for deployment in modern data centers where reliability, scalability, and efficiency are essential.
Key Features
- Single-socket design supporting AMD EPYC™ 7002 / 7003 series processors (up to 280W TDP)
- Up to 16 DIMM slots for high-capacity DDR4 memory (up to 4 TB ECC RDIMM / LRDIMM)
- High-density storage with 10 hot-swappable 2.5″ NVMe/SATA/SAS drive bays
- Dual PCIe 4.0 x16 full-height/full-length expansion slots
- Two AIOM (OCP 3.0) slots for flexible networking and I/O modules
- Dual 860W Titanium-level hot-plug redundant power supplies for high availability
- Advanced security features: TPM 2.0, secure boot, firmware validation, system lockdown
- Comprehensive management and monitoring via IPMI 2.0, KVM-over-LAN, and Supermicro Server Manager
- Optimized airflow and thermal design for high-density rack deployments
- Suitable for cloud infrastructure, edge compute, storage, AI inference, and virtualization
Specifications
Specification
Detail
Processor / CPU Support
Single AMD EPYC 7002 / 7003 series (Socket SP3)
Maximum CPU TDP Supported
Up to 280W (air-cooled)
Memory / DIMMs
16 DIMM slots; supports DDR4‑3200 ECC RDIMM / LRDIMM, up to 4 TB
Drive Bays
10 × 2.5″ hot-swappable bays (NVMe/SATA/SAS)
M.2 Slots
2 × M.2 PCIe 4.0 x4 (supports 2242 / 2260 / 2280 / 22110)
Expansion / PCIe Slots
2 × PCIe 4.0 x16 full-height/full-length
AIOM / OCP Slots
2 AIOM (OCP 3.0 compatible)
Power Supplies
Dual 860W Titanium-level hot-plug redundant (1+1)
Chassis / Form Factor
1U rackmount
Dimensions (W × H × D)
437 mm × 43 mm × 597 mm (17.2″ × 1.7″ × 23.5″)
Weight
Net: ~ 11.3 kg (25 lbs)
Cooling / Fans
6 PWM hot-swappable fans with optimized airflow design
Network / Connectivity
AIOM / OCP modules, dedicated BMC LAN port, USB, VGA, COM ports
Security & Firmware Protections
TPM 2.0, secure boot, signed firmware, system lockdown
Management / Monitoring
IPMI 2.0, KVM-over-LAN, health sensors, system monitoring, firmware updates
Use Cases / Workload Fit
Cloud infrastructure, storage servers, edge compute, AI inference, virtualization, content delivery
Operating Environment
10 °C to 35 °C; humidity non-condensing
Warranty / Support Options
Standard 1-year warranty; optional extended service and support plans
