Overview

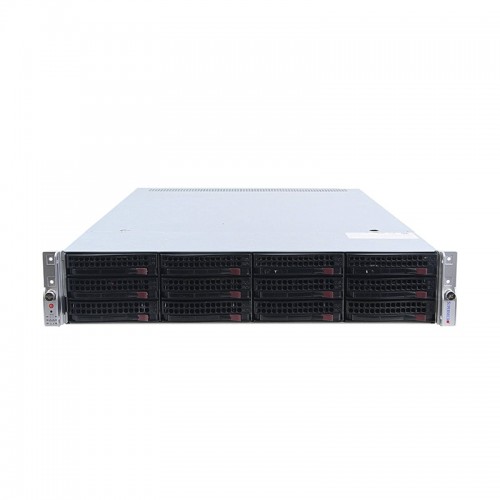

The Supermicro SYS‑6029U‑E1CR4T is a 2U dual-socket server optimized for high-density storage, software-defined infrastructure, and enterprise workloads. It supports dual Intel® Xeon® Scalable processors, high memory capacity, and a flexible NVMe/SATA/SAS drive configuration. Designed for performance-intensive applications, this server is ideal for cloud computing, virtualization, AI/ML workloads, database servers, and large-scale storage deployments.
With its efficient thermal design, redundant power, and advanced management capabilities, the SYS‑6029U‑E1CR4T delivers reliability, scalability, and operational efficiency in modern data centers.
Key Features
- Dual-socket design supporting Intel® Xeon® Scalable (3rd Gen) processors
- High memory capacity with up to 32 DDR4 DIMM slots supporting ECC RDIMM/LRDIMM
- 24 front hot-swappable 2.5″ NVMe/SATA/SAS drive bays for storage flexibility
- Multiple PCIe 4.0 expansion slots for GPUs, NICs, and storage controllers
- Redundant 1,200W Titanium-level hot-plug power supplies (1+1)
- Advanced system management via IPMI 2.0, KVM-over-LAN, and Supermicro Server Manager
- Security features including TPM 2.0, secure boot, firmware validation, and system lockdown
- Optimized airflow and cooling design for high-density rack deployments
- Supports GPU acceleration for AI/ML and HPC workloads
- Ideal for cloud, virtualization, database, and storage-intensive applications
Specifications
Specification
Detail
Processor / CPU Support
Dual Intel® Xeon® Scalable (LGA 4189), 3rd Gen
Maximum CPU TDP Supported
Up to 270W per processor
Memory / DIMMs
32 DIMM slots; DDR4‑3200 ECC RDIMM / LRDIMM; supports large memory footprints
Drive Bays
24 × 2.5″ hot-swappable NVMe/SATA/SAS drives
M.2 Slots
2 × M.2 PCIe 4.0 x4 (for boot or cache drives)
Expansion / PCIe Slots
Multiple PCIe 4.0 x16 / x8 slots for GPU, NIC, or storage expansion
Power Supplies
Dual 1,200W Titanium-level hot-plug redundant (1+1)
Chassis / Form Factor
2U rackmount
Dimensions (W × H × D)
437 mm × 88 mm × 730 mm
Weight
Net: ~25 kg; Gross: ~35 kg (approx.)
Cooling / Fans
Hot-swappable PWM fans with optimized airflow design
Network / Connectivity
OCP 3.0 slots for flexible NIC modules; dedicated BMC LAN port
Security & Firmware Protections
TPM 2.0, secure boot, firmware authentication, system lockdown
Management / Monitoring
IPMI 2.0, KVM-over-LAN, health sensors, system monitoring, firmware updates
Use Cases / Workload Fit
Cloud infrastructure, virtualization hosts, storage servers, AI/ML, HPC workloads
Operating Environment
10 °C to 35 °C; humidity non-condensing
Warranty / Support Options
Standard warranty (typically 1 year); optional extended service and support plans
