Overview

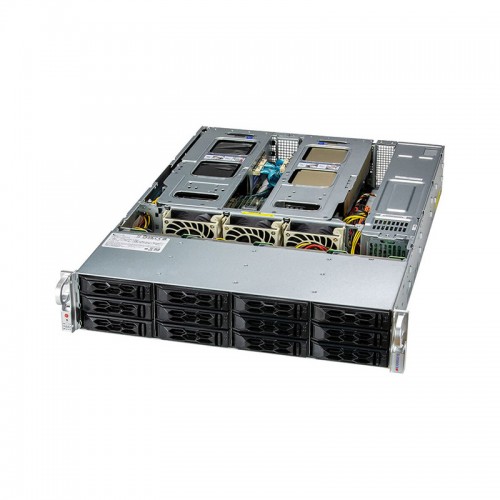

The Supermicro SYS-620C-TN12R is a 2U dual-socket server platform built for high-performance, storage-dense, cloud, virtualization, and data center workloads. It supports modern Intel® Xeon® Scalable (3rd Gen) processors, large memory capacities, and a flexible I/O architecture, while offering a hybrid drive bay design that supports NVMe, SATA, or SAS devices. With its robust chassis, redundant power, and advanced management features, this server is ideal for demanding enterprise and edge deployments where reliability, performance, and expandability are essential.
Key Features
- Dual-socket (LGA-4189) support for 3rd Generation Intel® Xeon® Scalable processors (up to high TDP models)
- Intel® C621A chipset
- Up to 16 DIMM slots supporting large memory footprint (DDR4 ECC RDIMM / LRDIMM / Intel® Optane persistent memory)
- 12 front hot-swap drive bays (3.5"/2.5") supporting NVMe, SATA, or SAS devices in hybrid configuration
- Multiple PCIe 4.0 slots (including x8 / x16 configurations) and dual AIOM (OCP 3.0) slots for networking expansion
- Dual redundant, hot-pluggable 1,200W Titanium-level power supplies (1+1)
- Fan cooling architecture optimized for thermal performance with shroud and speed control
- Management and serviceability features: IPMI / remote KVM, system monitoring, BIOS / firmware management, health sensors
- Security capabilities: TPM 2.0 support, secure boot / signed firmware, system lockdown, automatic firmware recovery
- Support for GPU acceleration (supports multiple GPU options) for mixed compute / storage / AI workloads
Specifications
Below is a representative specification set for the SYS-620C-TN12R. Actual configuration may differ based on component choices and optional modules.
Specification
Detail / Range
Processor / CPU Support
Dual Socket P+ (LGA-4189), 3rd Gen Intel® Xeon® Scalable CPUs
Maximum Core / Thread Support
Up to ~ 40 cores / 80 threads per CPU (varies by model)
Memory / DIMMs
16 DIMM slots; supports DDR4-3200 ECC RDIMM / LRDIMM; also supports Intel® Optane persistent memory
Drive Bays / Storage
12 front hot-swap bays (3.5" or 2.5") in hybrid NVMe / SATA / SAS configuration
PCIe / Expansion Slots
Multiple PCIe 4.0 slots: e.g. x8, x16; dual AIOM (OCP 3.0) slots for networking modules
M.2 Slots
2 × M.2 (PCIe 3.0 x2) NVMe slots for boot / cache devices
Chipset
Intel® C621A
Network Connectivity
Via AIOM / optional add-on network cards; dedicated BMC / IPMI LAN port
Power / Redundancy
Dual 1,200W Titanium-level hot-swappable power supplies (1 + 1 redundant)
Chassis / Form Factor
2U rackmount enclosure
Dimensions (W × H × D)
Approx. 437 mm × 89 mm × 648 mm
Weight
Approx. 15.2 kg (chassis only)
Cooling / Fans
Hot-swappable fans with PWM speed control; airflow shroud design
Security / Protection
TPM 2.0, secure boot, cryptographic firmware validation, firmware recovery, system lockdown
Service & Management
IPMI 2.0, remote KVM / virtual media, monitoring of temperatures, voltages, fans, etc.
Use Cases / Workload Fit
Virtualization hosts, storage servers, cloud infrastructure, edge compute / storage, AI / GPU-accelerated workloads
Operating Environment
Operating: +10 °C to +35 °C; non-operating: –40 °C to +60 °C; humidity non-condensing
Warranty & Support
Base warranty (e.g. 3 years or as offered by Supermicro); optional extended support / service plans available
