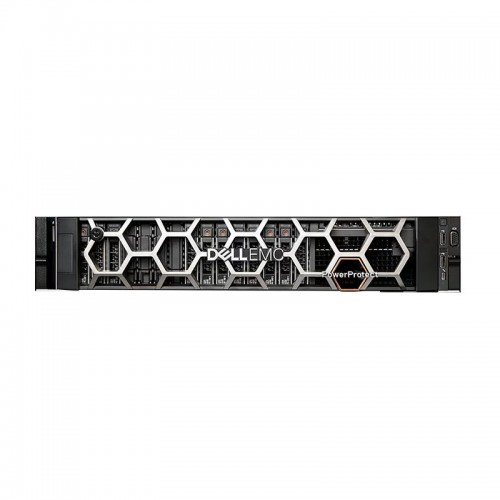

Dell EMC PowerProtect DD3300

Overview

The Dell EMC PowerProtect DD3300 is a high-performance data protection appliance designed to deliver fast, secure, and efficient data backup and recovery solutions. Optimized for small to medium-sized enterprises, it offers scalable storage capacities, advanced deduplication technologies, and seamless integration with multi-cloud environments.

Features

• High-Performance Data Protection: Achieves up to 4.2 TB/hr throughput, with DD Boost capabilities reaching up to 7.0 TB/hr, ensuring rapid backup and recovery processes.
• Scalable Storage Options: Available in configurations of 4 TB, 8 TB, 16 TB, and 32 TB, with cloud tiering support extending usable capacity up to 96 TB.
• Advanced Deduplication: Utilizes Dell EMC's advanced deduplication technology to optimize storage efficiency and reduce data redundancy.
• Flexible Networking: Equipped with 4 x 10 GbE ports, with optional 2 x 10 GbE ports for enhanced connectivity.
• Robust Security Features: Incorporates built-in security measures to protect data integrity and prevent unauthorized access.
• Cloud Integration: Supports seamless integration with multi-cloud environments for enhanced data mobility and protection.

Specifications

• Processor: 1 x 8-core Intel Xeon E4110 series, hyperthreaded.
• Memory: Configurable options: 16 GB, 24 GB, 48 GB, 56 GB, or 64 GB.
• Storage Configuration:
• 4 TB Model: 4 x 4 TB 7200 RPM NLSAS HDDs.
• 8 TB Model: 10 x 4 TB 7200 RPM NLSAS HDDs.
• 16 TB Model: 10 x 4 TB 7200 RPM NLSAS HDDs.
• 32 TB Model: 12 x 4 TB 7200 RPM NLSAS HDDs (front) and 4 x 4 TB 7200 RPM NLSAS HDDs (middle).
• SSD Cache: 1 x 480 GB SSD for NVRAM in 8 TB, 16 TB, and 32 TB configurations.
• Networking Ports:
• Standard: 4 x 10 GbE ports.
• Optional: 2 x 10 GbE ports.
• Power Supply: 1 or 2 hot-swappable power units.
• Cooling: 6 hot-swappable fans installed in two fan assemblies (3 fans per assembly).
• Rack Mounting: 2U form factor, compatible with four-post racks, adjustable between 24–36 inches (60.9–76.2 cm).
• Operating Environment:
• Temperature: 10° to 35° C (50° to 95° F).
• Humidity: 20% to 80%, non-condensing.
• Physical Dimensions:
• Width: 43.4 cm (17.09 inches).
• Depth: 71.55 cm (28.17 inches).
• Height: 8.68 cm (3.42 inches).
• Weight: 33.1 kg (72.91 lbs).
• Power Consumption: 750 W.
• Certifications: Complies with industry standards for safety and environmental impact.
