Overview

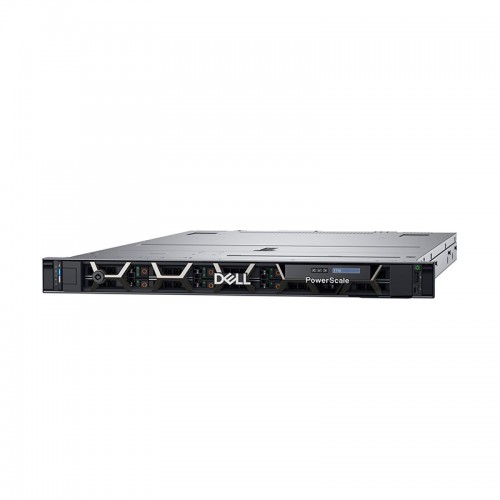

The Dell EMC PowerScale F710 is a high-performance, scale-out all-flash NAS storage node, designed to deliver enterprise-class throughput, low latency, and massive scalability. The F710 is built on a 1U chassis based on the Dell PowerEdge R660 server platform and is tightly integrated with Dell’s OneFS operating system to provide a unified clustered file system and global namespace. A minimum of three nodes (and up to 252) form a cluster, offering a single volume and flexible scaling for demanding file workloads.
Key Features
- All-NVMe Storage — Supports up to 10 NVMe SSD drives per node for high I/O performance and low latency.
- Powerful Compute — Dual Intel Xeon “Sapphire Rapids” processors (2.6 GHz, 24 cores each)
- Large Memory — 512 GB DDR5 ECC memory (16 × 32 GB)
- High-Throughput Networking
• Front-end networking: two ports (100 GbE or 25 GbE)
• Infrastructure (back-end) networking: dual 100 GbE ports Scale-Out Architecture — Cluster from 3 up to 252 nodes into a single file system and namespace - OneFS Operating System — Features include inline data deduplication/compression, erasure coding, automated tiering (SmartPools & CloudPools), SmartDedupe, SmartLock, SyncIQ replication, and global caching.
- Data Protection & Availability — Supports FlexProtect (N+1 through N+4 and mirroring), role-based access control, encryption (at rest and in-flight), secure boot, and audit logging.
- Non-Disruptive Upgrades & Management — OneFS supports rolling upgrades without downtime, unified management of the cluster, and features to optimize operations and resilience.
Specifications
Category
Specification
Form Factor / Chassis
1U, based on Dell PowerEdge R660 chassis
Processors
Dual Intel Xeon Sapphire Rapids 6442Y — 2.6 GHz, 24 cores per CPU
Memory
512 GB DDR5 ECC (16 × 32 GB)
Storage (Node Level)
Up to 10 × NVMe SSDs (available in TLC or QLC types)
Cluster Size
Minimum 3 nodes; maximum 252 nodes
Raw Cluster Capacity Range
From ~115 TB up to 307 PB (depending on drive choices and cluster size)
Front-End Network (per node)
Dual ports, supporting either 25 GbE (or 10 GbE backward) or up to 100 GbE
Back-End / Infrastructure Network
Dual 100 GbE ports (also supporting 40 GbE mode)
Physical Dimensions (with bezel)
Height: 42.8 mm (1.68 in) • Width: 482 mm (18.97 in) • Depth: 822.88 mm (32.39 in)
Weight
~22.5 kg (49.6 lbs)
Power & Cooling
1400 W dual redundant power supplies; typical power draw ~769 W @25 °C, rising with temperature
Thermal / Heat Dissipation
~2,622 BTU/hr at 25 °C, ~3,025 BTU/hr at 35 °C
Security & Compliance
Data at rest encryption, TLS/in-flight encryption, role-based access control, secure boot, audit logging, TPM support
Software Requirements / OneFS
Ships with OneFS (9.x series or later), non-disruptive upgrades supported
Data Reduction & Efficiency
SmartDedupe, compression, automated tiering, deduplication, etc.
