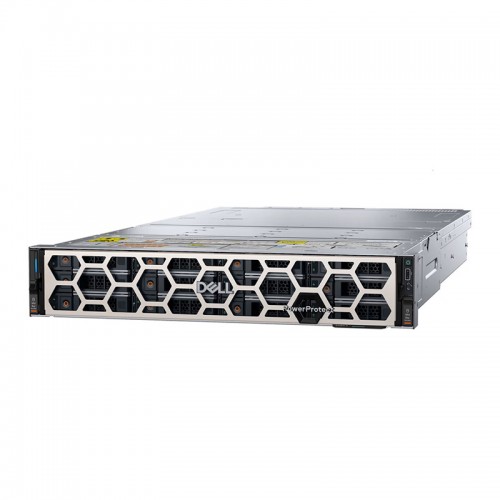

Dell PowerProtect Data Domain DD6410

Overview

The Dell PowerProtect Data Domain DD6410 is a high-performance, all-flash data protection appliance designed to deliver enterprise-grade backup and recovery solutions. Built on Dell's trusted Data Domain platform, the DD6410 offers scalable capacity, advanced cyber resilience features, and seamless integration with multi-cloud environments.

Key Features

• High-Performance Architecture: Equipped with dual Intel Xeon 5416S processors (16 cores each), 256GB DDR5 memory, and 32GB of Software Defined Persistent Memory (SDPM), ensuring rapid data processing and efficient storage operations.
• Scalable Storage Capacity: Supports usable capacities ranging from 12 TB to 256 TB in the Active Tier, and up to 768 TB with Cloud Tier integration, accommodating growing data protection needs.
• Advanced Cyber Resilience: Incorporates features like end-to-end data encryption, secure data replication, and immutable snapshots to safeguard against cyber threats and ransomware attacks.
• Seamless Multi-Cloud Integration: Facilitates efficient data movement between on-premises and cloud environments, enhancing backup and disaster recovery strategies.
• Compact 2U Form Factor: Designed to fit into standard data center racks, optimizing space utilization without compromising on performance.

Specifications

• Processor: 2 x Intel Xeon 5416S (16 cores each)
• Memory: 256GB DDR5 RAM
• Persistent Memory: 32GB Software Defined Persistent Memory (SDPM)
• Storage Configuration: 20 x 8TB HDDs
• Cache Storage: 1 x 3.84TB SSD
• Networking Ports:
• 1 x Management port LOM
• Optional: Up to 2 x Quad-port 10G Base-T or 25G SFP+
• Optional: Up to 2 x Quad-port 32Gb FC HBA
• Power Supply: Dual 1400W redundant power supplies
• Form Factor: 2U Rackmount
• Dimensions:
• Width: 44.8 cm (17.63 inches)
• Height: 8.7 cm (3.41 inches)
• Depth: 83.6 cm (32.9 inches)
• Weight: Up to 43.8 kg (96.5 lbs)
