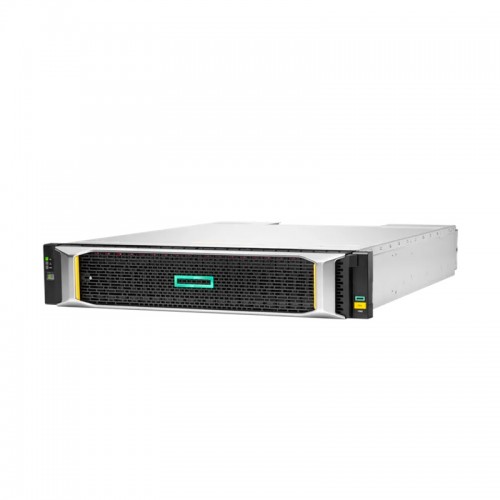

HPE MSA 1060 Storage Array

Overview

The HPE MSA 1060 Storage Array is a cost-effective, entry-level shared storage solution designed for small to medium-sized businesses. It offers a balance between performance and budget, making it ideal for budget-constrained customers seeking modern storage capabilities. With support for 10GBase-T iSCSI, Fibre Channel, and 12Gb SAS host interfaces, the MSA 1060 provides flexibility and scalability to meet evolving IT demands.

Features

• Affordable Flash Storage: Brings flash-ready storage to price-sensitive customers without compromising on performance.
• High Performance: Capable of delivering over 150,000 IOPS, accelerating applications affordably.
• Flexible Host Connectivity: Offers 10GBase-T iSCSI, Fibre Channel, and 12Gb SAS host interface connectivity.
• Modular Architecture: Supports up to 24 SFF drives per array, with the ability to expand using HPE MSA 2060 enclosures.
• Data Protection: Features virtualized snapshot technology and remote replication via Fibre Channel or iSCSI for disaster recovery.
• Automated Tiering: MSA's automated tiering engine dynamically responds to workload changes, ensuring optimal data placement.

Specifications

• Form Factor: 2U rack-mountable
• Controllers: Dual 12Gb SAS 2-port controllers
• Host Connectivity Options:
• 16Gb Fibre Channel
• 10GBase-T iSCSI
• 12Gb SAS
• Drive Bays: Up to 24 SFF (2.5") drives
• Maximum Raw Capacity: Up to 737.28 TB with SFF drives
• Cache:
• Max Read Cache: 8TB
• Data (Read/Write) Cache + System Memory: 24GB
• RAID Levels Supported: 0, 1, 5, 6, 10, MSA-DP+
• Operating System Compatibility:
• Windows Server 2022, 2019, 2016
• VMware vSphere 6.7
• Red Hat Linux 8
• SUSE SLES 15
• Warranty: Three-year limited warranty with parts exchange next business day delivery
