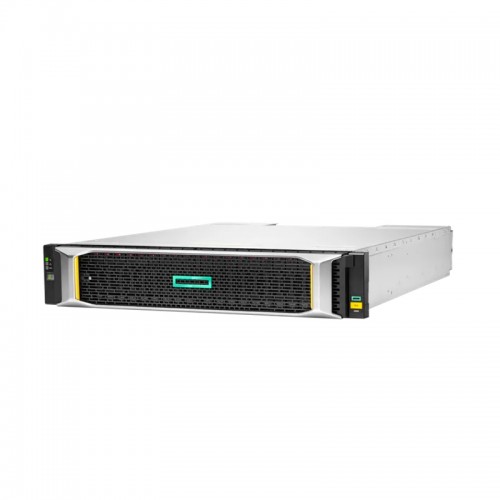

HPE MSA 2060 Storage Array

Overview

The HPE MSA 2060 Storage Array is a flash-ready hybrid storage solution designed to provide affordable application acceleration for small to medium-sized businesses and remote office deployments. Offering up to 395,000 IOPS, it delivers up to 80% faster performance compared to its predecessor, making it suitable for demanding workloads. Its modular architecture allows for scalability, supporting a mix of SSDs and HDDs to meet evolving storage needs.

Key Features

• High Performance: Delivers up to 395,000 IOPS, enhancing application responsiveness.
• Hybrid Storage Configuration: Supports a combination of SSDs and HDDs, enabling cost-effective performance.
• Automated Tiering: Automatically moves frequently accessed data to faster storage media in real-time.
• Data Protection: Features virtualized snapshots and remote replication via Fibre Channel or iSCSI for disaster recovery.
• Encryption Support: Offers self-encrypting drives with local key management for data security.
• Modular Expansion: Supports up to 9 expansion enclosures (10 total including the array), with options for both 3.5-inch LFF and 2.5-inch SFF drives.

Specifications

• Model: HPE MSA 2060 Storage Array
• Form Factor: 2U
• Controller Options:
• 16 Gb Fibre Channel
• 10/25 GbE iSCSI
• 12 Gb SAS
• Drive Compatibility:
• Up to 24 SFF or LFF drives per base array
• Supports SSDs, Enterprise SAS HDDs, and Midline SAS HDDs
• Maximum Raw Capacity: Up to 7.37 PB
• Power Supply: Dual 580W redundant power supplies
• Management Interface: Storage Management Utility (SMU) via web browser or SSH
