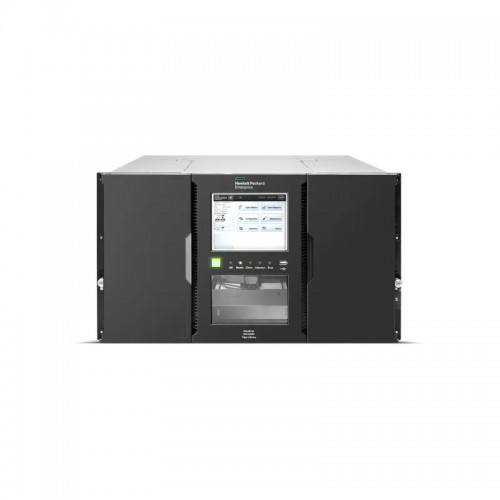

HPE StoreEver MSL6480 Tape Library

Overview

The HPE StoreEver MSL6480 Tape Library is a high-density, scalable mid-range tape automation solution designed for enterprise backup, disaster recovery, and long-term data archiving. It offers exceptional scalability, density, and performance, making it ideal for organizations with growing data storage needs.

Features

• Scalability: Start with an 80-slot 6U Base Library Module and expand up to 560 slots in a 42U rack by adding up to 6 Expansion Modules.
• Drive Support: Compatible with LTO-9, LTO-8, LTO-7, and LTO-6 half-height (HH) or full-height (FH) drives, supporting both SAS and Fibre Channel interfaces.
• High Capacity: Achieve up to 25.2PB of compressed storage capacity with LTO-9 drives.
• Performance: Maximize throughput with up to 60.4 TB/hour using 42 LTO-9 drives.
• Space Efficiency: Achieve up to 13 cartridge slots per 1U of rack space, optimizing floor space utilization.
• Partitioning: Create up to 20 logical library partitions, allowing for flexible and secure data management.
• Encryption: Supports AES-256 encryption for data security.
• Remote Management: Utilize HPE Command View for Tape Libraries (CVTL) for web-based remote management and diagnostics.
• Proactive Monitoring: Leverage HPE TapeAssure Advanced software for predictive analytics and proactive monitoring.
• Easy Installation: Features a color touch control panel with wizards for straightforward installation and configuration.

Specifications

• Drive Types Supported: LTO-9, LTO-8, LTO-7, LTO-6 Ultrium half-height (HH) or full-height (FH) drives.
• Number of Cartridge Slots: 80 slots per 6U module; up to 560 slots in a fully expanded system.
• Maximum Capacity: Up to 25.2PB compressed (2.5:1 compression ratio) with LTO-9 drives.
• Maximum Data Transfer Rate: Up to 60.4 TB/hour with 42 LTO-9 drives.
• Host Interface: 8 Gb/sec Fibre Channel or 6 Gb/sec SAS, depending on drive type.
• Power Supply: Redundant hot-plug power supplies for high availability.
• Physical Dimensions: 6U for Base Library Module; each Expansion Module is also 6U.
• Weight: Approximately 60 kg (132 lbs) for Base Library Module; weight varies with configuration.
• Operating Temperature: 10°C to 35°C (50°F to 95°F).
• Relative Humidity: 20% to 80%, non-condensing.
