Overview

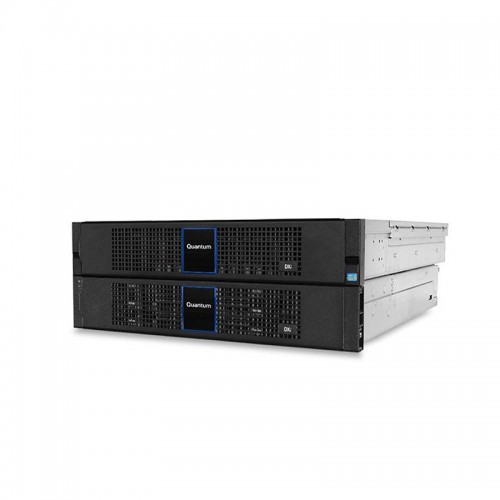

The Quantum DXi480 / DXi4800 is a disk-based backup appliance designed for small-to-mid-sized organizations or remote/branch sites that need efficient, scalable, and secure backup and replication capabilities. It leverages advanced deduplication and replication technology to compress and manage backup data, enabling extended retention on disk while minimizing storage and bandwidth costs.
With its Capacity-On-Demand (CoD) scalability, the system can start at modest capacity and grow to hundreds of terabytes as requirements expand. It supports multi-protocol access (NAS, VTL, OST) and integrates with leading backup software for flexible deployment. The DXi4800 also offers secure replication between sites, immutable snapshots, and optional encryption to protect data integrity and prevent unauthorized access or tampering.
Features
- Inline variable-length deduplication & compression — Maximizes data reduction to reduce footprint and cost
- Multi-protocol access — Supports VTL (Fibre Channel emulation), NAS (CIFS / NFS), and OST (OpenStorage) interfaces
- Capacity-On-Demand (CoD) licensing — Start small (e.g. 8 TB usable) and enable additional capacity later via license or module
- Scalable expansion modules — Add growth capacity with JBOD / expansion modules (each module typically provides additional capacity)
- High throughput & performance — Delivers up to ~34 TB/hr of data ingest throughput, consistent across capacity points
- WAN-efficient replication — Asynchronous replication across sites for disaster recovery and offsite backup
- Path-to-Tape (PTT) support — Ability to write directly to tape libraries from the appliance, bypassing backup servers
- Immutable snapshots / snapshot protection — Safeguard backups so they cannot be altered or deleted maliciously
- Encryption & security options — Encrypt data at rest and in transit, use self-encrypting drives (SED)
- Integration with backup ecosystems — Certified and supported with major backup software (e.g. OST / Veritas, Veeam)
- Dynamic expansion & non-disruptive upgrades — Add modules or enable capacity without needing downtime
- Monitoring, alerting, and management tools — Built-in GUI, CLI, health dashboards and analytics
Specifications
Below are typical specifications for a Quantum DXi4800 system. Actual figures depend on the configuration, modules, or options selected.
Specification
Typical / Range
Usable Capacity (base)
From ~ 8 TB usable
Maximum Usable Capacity
Up to ~ 315 TB (via expansion modules and licensing)
Expansion Module Capacity
Each expansion (JBOD) contains 12 drive slots; provides ~ 72 TB of licensable capacity, in increments (e.g. 18 TB steps)
Throughput / Performance
Up to ~ 34 TB/hour ingest throughput
Node Form Factor / Rack Units
Node: 2U, expansion modules: 2U each
Dimensions / Weight
Node depth front-to-back ~ 26.7 in (67.8 cm) ; width ~ 17.1 in (43.4 cm) ; standalone weight ~ 72.9 lbs (33.1 kg)
Network Interfaces
2 × 1 GbE (management), 1 × 10 GbE (for NAS / OST / replication), and options for 10 / 25 GbE / – multiple ports for data / replication
Fibre Channel / VTL Emulation
Up to 8 Fibre Channel paths for VTL / path-to-tape connectivity
Power / Redundancy
Dual hot-swappable redundant power supplies; voltage 100–240 VAC, 50/60 Hz
I/O / Connectivity
Supports multiple Ethernet, Fibre Channel, SAS links; supports dynamic load balancing and connectivity for backup workflows
Protocols Supported
VTL emulation, NAS (CIFS, NFS), OST (OpenStorage), path-to-tape
Encryption & Security
AES 256-bit encryption (at rest, optional), encryption of data-in-flight, use of self-encrypting drives (SED)
Memory / Processor / Controller
Uses high-performance controllers and memory suitable for deduplication, metadata, and replication workloads (varies by model)
Expansion / Scalability
Non-disruptive expansion via modules and license keys; supports growth without downtime
Warranty & Support Options
Typically includes standard 1-year warranty; optional extended support and service contracts available
