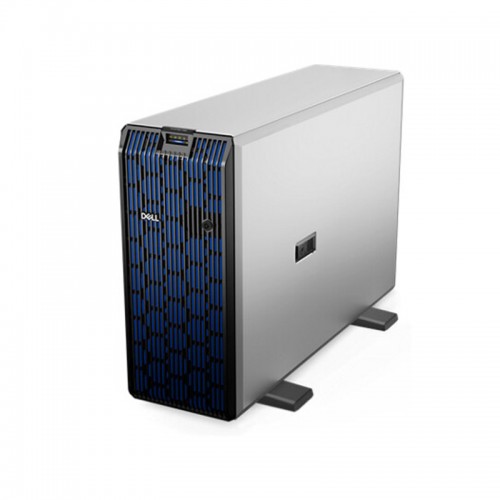

Dell EMC PowerEdge T560

Overview

The Dell EMC PowerEdge T560 is a high-performance, enterprise-class tower server designed to meet the demanding needs of modern IT environments. Ideal for small to medium-sized businesses and remote offices, it offers a balance of power, scalability, and energy efficiency in a compact 4.5U form factor.

Features

• Dual Processor Support: Equipped with up to two 4th or 5th Generation Intel® Xeon® Scalable processors, delivering up to 32 cores per CPU.
• Memory Capacity: Supports up to 1TB of DDR5 RDIMM memory, operating at speeds up to 4800MT/s.
• Storage Flexibility: Offers various storage configurations, including up to 12 x 3.5-inch or 24 x 2.5-inch SAS/SATA drives, with options for NVMe SSDs.
• Graphics Processing: Supports up to 6 GPUs, enhancing capabilities for AI inferencing and virtualization tasks.
• Expansion Slots: Includes multiple PCIe Gen4 and Gen5 slots for additional expansion cards.
• Power Supply Options: Provides a range of redundant power supply units, including 1100W to 2400W options, ensuring reliability and uptime.
• Cyber-Resilience: Features built-in security measures to protect data and workloads from cyber threats.

Specifications

• Form Factor: Tower (4.5U)
• Processor Options:
• Up to two 4th Generation Intel® Xeon® Scalable processors
• Up to two 5th Generation Intel® Xeon® Scalable processors
• Memory:
• 16 x DDR5 RDIMM slots
• Maximum capacity: 1TB
• Memory speed: Up to 4800MT/s
• Storage:
• Up to 12 x 3.5-inch SAS/SATA drives
• Up to 24 x 2.5-inch SAS/SATA drives
• NVMe SSD support available
• Graphics Processing:
• Supports up to 6 GPUs
• Expansion Slots:
• Multiple PCIe Gen4 and Gen5 slots
• Power Supply:
• 1100W to 2400W redundant options
• Security:
• Integrated cyber-resilience features
